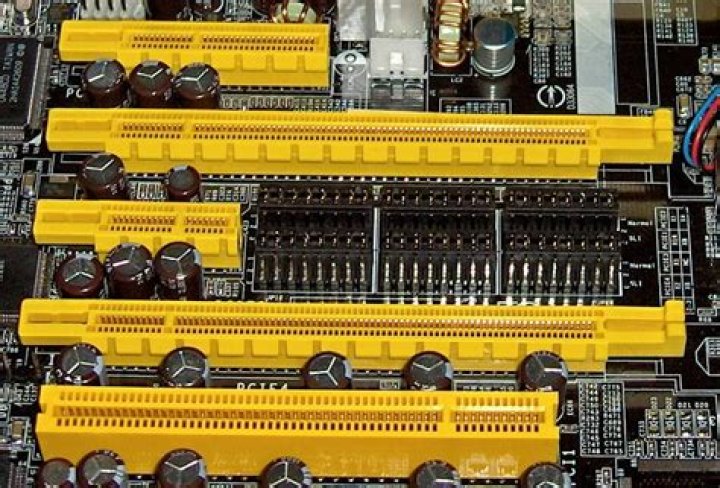

Can I plug PCIe x1 to PCIe x16?
The short answer is yes. You can plug a PCIe x1 card into the larger PCIe x16 slot. A PCIe x1 card can be plugged into any larger PCIe slot and it will work just fine. PCIe standard is not only cross compatible but also backwards compatible.
What is the difference between PCI Express and PCI Express x16?
It’s more obvious when you compare the PCIe-based video card with a PCI video card, the PCIe video card x16 type is almost 29 times faster than PCI video card. 2. In most cases, there are both PCI and PCIe slots on the motherboard, so please fit the card into its matching slot and do not misuse the two types. 3.
How many PCI Express x16 slots are there in a motherboard?
PCI Express 3.0 x16: 2 x PCI Express x16 slots (PCIEX4_1/PCIEX4_2), integrated in the Chipset: Supporting PCIe 3.0 x4 mode * The PCIEX4_2 slot shares bandwidth with the SATA3 4, 5 connectors. The PCIEX4_2 slot operates at up to x2 mode when a device is installed in the SATA3 4 or SATA3 5 connector.
How many PCI Express connectors are there for SSDs?
PCI Express 3.0 x16: 2 x PCI Express 3.0 x16* * The M2B_SB connector shares bandwidth with the PCIEX4 slot. The PCIEX4 slot will become unavailable when an SSD is installed in the M2B_SB connectors. * The PCIEX2 slot shares bandwidth with the SATA3 4, 5 connectors.
What is the pciex4_2 slot used for?
The PCIEX4_2 slot operates at up to x2 mode when a device is installed in the SATA3 4 or SATA3 5 connector. Onboard Video Chipset: Integrated in the New Generation AMD Ryzen with Radeon Graphics
