Can you use a 3-way light switch as a single pole?
To convert a 3-way switch to single pole, one of the traveler wires is removed from the switch. In order for a 3-way switch to function as a single pole, the wires need to be connected to the common and one of the traveler terminals. 3-way switches can be converted to single pole in several configurations.
Is a 3-way switch single pole or double pole?
The most common household switch, a single-pole, has two terminals and simply turns power on or off. A three-way switch has three terminals; a four-way has four.
Is a three-way switch a single pole double throw?
Electrically, a typical “3-way” switch is a single pole, double throw (SPDT) switch. By correctly connecting two of these switches together, toggling either switch changes the state of the load from off to on, or vice versa.
How do you wire a double pole switch to a single pole?
Use one screw in the ” On ” position and one screw in the ” Off ” position on the same side. Use the same clockwise wrapping technique as the ground wire to attach the black cables to the two screws. Which black wire goes on top or the bottom does not matter. Push all cables into the box and fold as they go.
Can I use a double pole switch as a single pole?
There are two different types of switches: the single pole and the double pole switch. A double pole switch can be used to control light and a fan or 2 lights on separate circuits. It is easy to wire a double pole switch to work as a single pole switch because only one side is used instead of both.
Can I pull power from a 3 way switch?
If you’re missing the hot/neutral, the only option you have is to run a totally new wire, or possibly (depending on how it’s wired), you can convert the 3-way to a single switch, and then re-purpose the wires to supply constant hot and neutral to the new outside switch (effectively, one of your 3 way switches would get …
Does it matter how you wire a single pole switch?
On a single pole, no it doesn’t matter but usually you would have a white for the hot and a black for the switchleg unless there’s a hot connection in the box. When the hot comes from a ceiling box a white is used to feed the switch normally if using romex or armored cable.
Can you use a 3 way switch as a single pole?
To use a three-way switch as a single pole one, connect the hot wires to the common terminal and the traveler on the same side of the switch body. You don’t need the other terminal on the three-way switch, so it’s fine to cover it over with electrical tape to ensure the terminals don’t get mixed up.

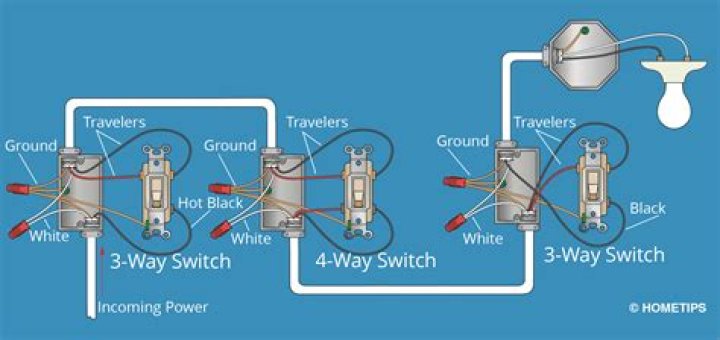

How do you wire a 3 way switch to a switch?
Connect the wires to the new 3-way switches with ground screws using one of the two wiring diagrams (Fig. A or B). Pro tip: The switches will be identified by a label on the common terminal and/or the terminal screw will be a different color.
How do you wire a single pole light switch?
Now that you know which terminals to use, you can wire the switch following the same procedure you would use for any single pole switch. Connect the hot wire from the power source to the common terminal and the hot wire going to the fixture to the uncovered traveler.
How do you connect two light switches together?
The black wire then connects to the taped white wire that goes from switch one and then connects to the common terminal in switch two. Red and black travelers then connect paired traveler terminals on both switches. In the third case, the wires from the power source go from one switch to another, then the fixture.
