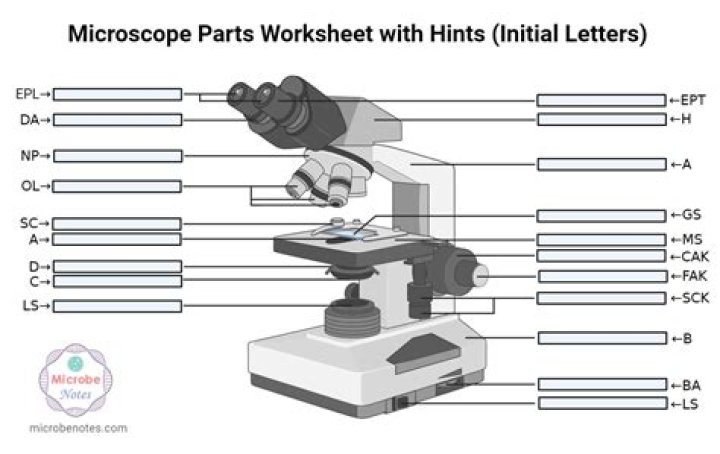

How do all the parts of a microscope work together?
All of the parts of a microscope work together – The light from the illuminator passes through the aperture, through the slide, and through the objective lens, where the image of the specimen is magnified. The then magnified image continues up through the body tube of the microscope to the eyepiece,…
What is the function of the head of the microscope?
Head – This is also known as the body, it carries the optical parts in the upper part of the microscope. Base – It acts as microscopes support. It also carriers the microscopic illuminators.
What is a condenser focus knob on a microscope?
Condenser focus knob – this is a knob that moves the condenser up or down thus controlling the focus of light on the specimen. Abbe Condenser – this is a condenser specially designed on high-quality microscopes, which makes the condenser to be movable and allows very high magnification of above 400X.
What is the function of the body tube in microscope?
Body tube (Head): The body tube connects the eyepiece to the objective lenses. Arm: The arm connects the body tube to the base of the microscope. Coarse adjustment: Brings the specimen into general focus.
What is the power of the eyepiece on a microscope?
They eyepiece is usually 10x or 15x power. Tube: Connects the eyepiece to the objective lenses. Arm: Supports the tube and connects it to the base of the microscope. Base: The bottom of the microscope, used for support.
What is a specimen mounted on a glass slide?
It is the object being studied and is mounted on the slides, which is a sheet of glass that is flat and rectangle in shape. The specimen is put on the glass and the slide is inserted into the stage. Image 14: The image above is an example of a glass slide where the specimen is placed.
What is the imaging element of a microscope?
Fundamental to the understanding of image formation in the microscope is the action of individual lens elements that comprise the components in the optical train. The simplest imaging element is a perfect lens (Figure 2), which is an ideally corrected glass element that is free of aberration and focuses light onto a single point.
