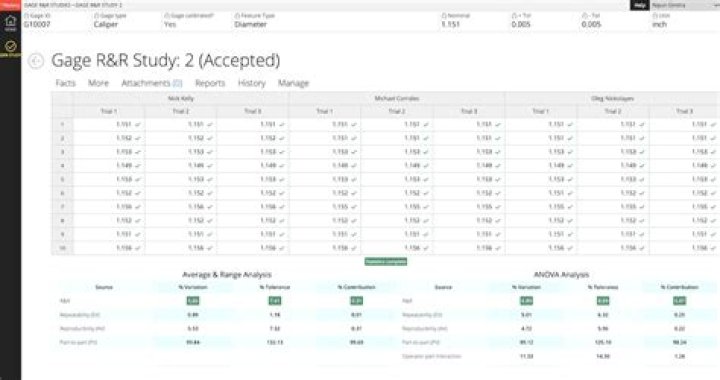

How do you interpret Gage R and R results?

How do you interpret Gage R and R results?

If the % Gage R&R is under 10%, the measurement system is generally considered to be an adequate measurement system. If the % Gage R&R is between 10 % to 30%, the measurement system may be acceptable for some applications. If the % Gage R&R is over 30%, the measurement system is considered to be unacceptable.

What is study variation in Gage RR?

What is study variation? In gage R&R, study variation (Study Var) is the amount of variation caused by the measurement system and by the differences between parts. It is calculated as 6 * the standard deviations of each source of variation.

What is a good gauge R and R?

A good measurement system has very low noise, preferably less than 1% of the total variability in your data, indicated as a gage R&R of less than 10%. A questionable system will have noise between 1% and 9% of the total variability, or a gage R&R between 10% and 30%.

How do you interpret repeatability and reproducibility?

repeatability measures the variation in measurements taken by a single instrument or person under the same conditions, while reproducibility measures whether an entire study or experiment can be reproduced in its entirety.

What is meant by MSA in quality?

Measurement statistical analysis (MSA) is the practice of using statistical tools such as a gage R&R (repeatability and reproducibility) study to determine if a measurement system is capable of precise measurement. In addition, MSA determines the amount of error derived from the measurement process itself.

How is study variation calculated?

The study variation is calculated as the standard deviation for each source of variation multiplied by 6 or the multiplier that you specify in Study variation. Usually, process variation is defined as 6s, where s is the standard deviation as an estimate of the population standard deviation (denoted by σ or sigma).

What is Percent study variation?

%StudyVar: The percentage of variation due to the source compared to the total variation, but with the added benefit of extrapolating beyond your specific data values.

When should I run a gauge R&R?

Gage R&R studies are run to determine how “good” your measurement system is. After all, you want a measurement system that can tell if the product is within specifications or if one sample is different from another sample. So, you perform Gage R&R studies. You have multiple operators test multiple parts multiple times.

What is a primary benefit of Gage R & R?

A gage R&R study helps you investigate: Repeatability—How much variability in the measurement system is caused by the measurement device. Reproducibility—How much variability in the measurement system is caused by differences between operators.

How do you determine reproducibility of results?

How to Perform Reproducibility Testing

1. Establish a Goal.
2. Determine What You Will Test or Measure.
3. Select a Variable or Condition to Change.
4. Perform a Test With Variable A.
5. Perform a Test With Variable B.
6. Analyze the Results.

How do you know if results are reproducible?

A measurement is reproducible if the investigation is repeated by another person, or by using different equipment or techniques, and the same results are obtained. N.B. “the same” results implies identical, but in reality “the same” means that random error will still be present in the results.
