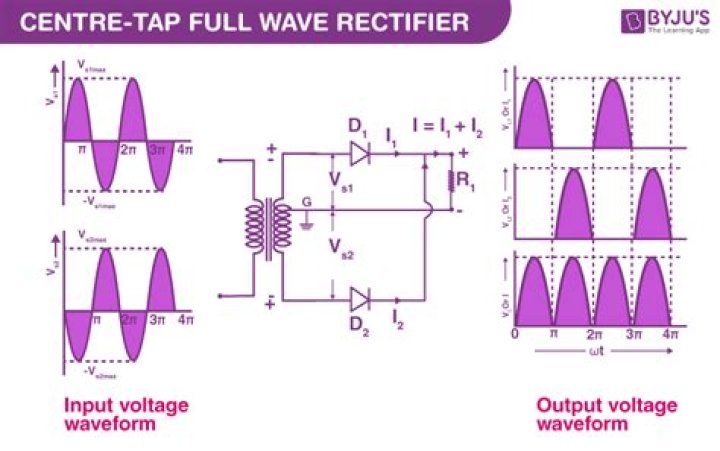

What is the efficiency of full wave rectifier with capacitor filter?
The ripple factor difference will be compensated at higher capacitor values. The efficiency of full wave rectifier is above 80% which is double that of a half wave rectifier.
What is the efficiency of a full wave bridge rectifier?
Efficiency of Bridge Rectifier Note: A bridge rectifier has a maximum efficiency of 81.2%.
What does a capacitor do in a full wave bridge rectifier?
Full-wave Rectifier with Smoothing Capacitor The smoothing capacitor converts the full-wave rippled output of the rectifier into a more smooth DC output voltage.
How do you calculate the efficiency of a full wave rectifier filter?
Find out Vrms and ripple factor (r) using formula for full wave rectifier with filter as: Vrms= Vrp-p/4√3 and ripple factor (r) =1/ (4√3 f RLC), where Vrp-p is peak to peak ripple voltage. Find out efficiency by formula (η) = (Vdc/Vac)2, where Vac is nothing but Vrms of full wave rectifier.
How do you calculate the efficiency of a full wave rectifier?
Ans: The formula of efficiency of full wave rectifier is η = DC Power Output / AC power input.
What is the maximum efficiency η of a half wave and full wave rectifier?
Efficiency of the Half-wave Rectifier Therefore, maximum rectifier efficiency = 40.6%.
Why capacitor filter is used in full wave rectifier?
Analyzing Full-Wave Rectifier with Capacitor Filter But there is a chance of presence of ripples even in the full-wave rectifier. So in order to make the output ripple-free, a capacitor is connected across the load. Hence this capacitor filter is helpful to remove the ripples and make the output purer.
How do you calculate the efficiency of a rectifier?
Rectifier efficiency is defined as the ratio of DC power to the applied input AC power. The AC input power is given by: Pac= I2rms(rf + RL) , where rf is diode resistance. Therefore, maximum rectifier efficiency = 40.6%. This means only 40.6% of the input AC power is converted into DC power.
