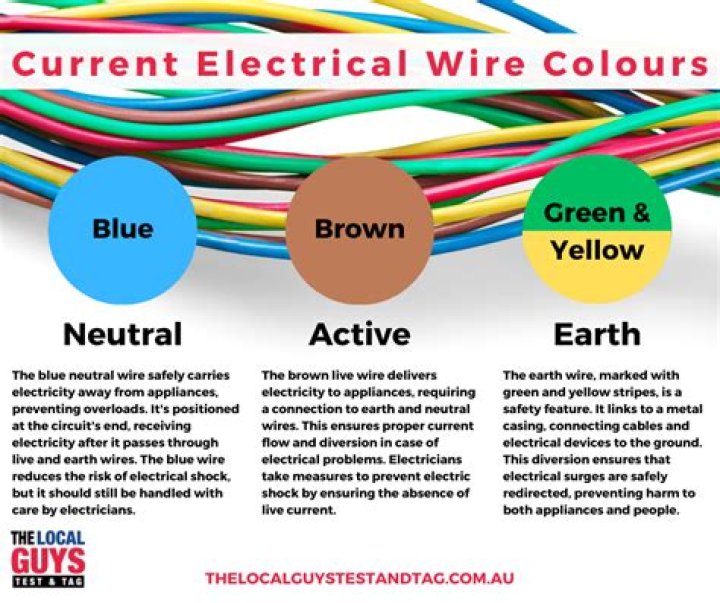

What wires are brown black and grey?
The internal 3-core and earth electrical cable colours comprise a live brown wire, a neutral grey wire, a green/yellow protective earth wire and an additional black conductor which we have discussed as the live line 2 wire.
Is grey wire live or neutral?
The National Electrical Code states that grey wire must be used for neutral conductors. These wires may still carry power that can give an electric shock and injure you. Neutral wires deliver power back to the service panel. The standard grey wire is known as the Line-phase 3 in its AC code.
Is brown wire same as black?
Brown is your hot wire so you want to connect that to your building’s black wire. The blue is negative or return, so that will go to white. Green with yellow stripe is the ground and will go to the building green.
Which wire is positive grey or black?
Wire Colors for DC Power The coloring is as follows: Positive – The wire for the positive current is red. Negative – The wire for the negative current is black. Ground – The ground wire (if present) will be white or grey.
What Colour is grey wire?
3-Phase Colours in the UK
| Old UK 3-Phase Colours | New UK 3-Phase Colours | |
|---|---|---|
| Phase 1 | Red | Brown |
| Phase 2 | Yellow | Black |
| Phase 3 | Blue | Grey |
| Neutral | Black | Blue |
What is grey wiring?
In the U.S. AC system, grey wiring is not one of the “common” wire colors. Instead, it is a federally-accepted alternate for the neutral wire, one whose principal color is typically white. This color-coding system is required by the U.S. National Electrical Code.
Can a brown wire be neutral?
The blue wire, also referred to as the neutral wire, has the function of transferring electricity away from the appliance. The brown wire, otherwise known as the live wire, transfers electricity to the appliance. The combination of these wires is referred to as a circuit.
Which wire is hot black or brown?
The wiring convention is black for hot, white for neutral and red for other such as a common terminal on a two-way switch arrangement (two switches control one light or outlet).
What is GREY wire?
What is a Gray Neutral Wire? The neutral wire (whether gray or white) is used to connect a conductive piece of metal (known as the neutral bus bar) to the electrical panel so that it can attract the current and distribute it throughout the facility.
What is the brown wire in electrical wiring?
live wire
The brown wire, otherwise known as the live wire, transfers electricity to the appliance. The combination of these wires is referred to as a circuit.
