Where is the drum on a Brother fax machine?

For Brother printers, the drum unit is usually connected to the toner cartridge. 1. To find it, simply open the front flap of your laser printer and find the toner cartridge(s) which the drum unit will be attached to or beneath.

What is the drum on a Brother fax machine?

What is the drum unit? The drum unit transfers the toner to the paper. The laser printer puts the toner on the roller called “The photosensitive drum” inside the drum unit, and then prints letters and images by fixing toner to the paper by heat and pressure.

What does it mean when the fax machine says change drum soon?

The message Change Drum Soon indicates the drum unit will need to be replaced soon. Even when the LCD displays the message Change Drum Soon, you can still continue to print. You can replace the drum unit when you feel the print quality is no longer acceptable.

How do I fix the drum error on my Brother printer?

Drum Error (Drum!)

  1. The corona wires have become dirty. Clean the corona wires in the drum unit.
  2. The drum unit or the toner cartridge and drum unit assembly is not installed correctly. Reinstall the toner cartridge and drum unit assembly.
  3. If the issue still continues, the drum unit is at the end of its life.

Is drum different than toner?

The toner cartridge is the container that holds the toner powder. The drum unit is an electrically charged cylinder that fuses that toner powder onto paper to create text and images. Both of these components are essential for producing a print.

What is drum End Soon brother?

The message Drum End Soon indicates the drum unit will need to be replaced soon. You can replace the drum unit when you feel the print quality is no longer acceptable or when the message Replace Drum is displayed.

What is drum end soon?

How do I get my Brother printer to recognize my new drum?

Once the new drum is replaced, you will need to reset the drum counter on the Brother HL-L2350DW:

  1. Make sure the machine is on.
  2. Close up the front cover.
  3. Hold down the “OK” button and the “up” arrow at the same time.
  4. Press the “OK” button to select “Drum”.
  5. Select the “down” button to reset the drum counter.

How do I fix the drum error on my brother fax machine?

The message “Drum Error” will appear on the display if the corona wire on the drum unit needs to be cleaned.

  1. Open the front cover and remove the drum unit and toner cartridge assembly.
  2. Clean the corona wire inside the drum unit.

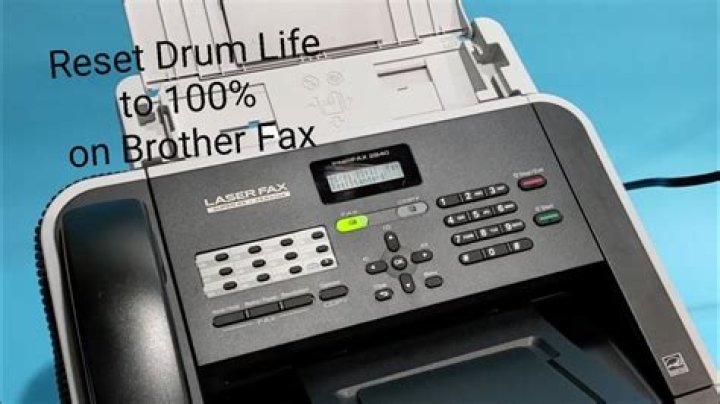

How do I reset the drum on my brother fax machine?

If you reset the drum counter during the life of the drum unit currently being used, the remaining drum life will not be displayed accurately.

  1. Make sure that the machine is turned on.
  2. Open the front cover.
  3. Press and hold OK for 2 seconds.
  4. Press the Up arrow key or 1 to reset the drum counter.
  5. Close the front cover.
